    6850645 Draeger Oxygen Sensor O2 Cell / Oxygen Battery Plastic Metal Material

    Ask Lasest Price
    Brand Name : drager
    Model Number : 6850645
    Certification : CE
    Price : as discussed
    Payment Terms : T/T, Western Union
    Supply Ability : 300pcs / week
    Delivery Time : 2-3 work days
    • Product Details
    • Company Profile

    6850645 Draeger Oxygen Sensor O2 Cell / Oxygen Battery Plastic Metal Material

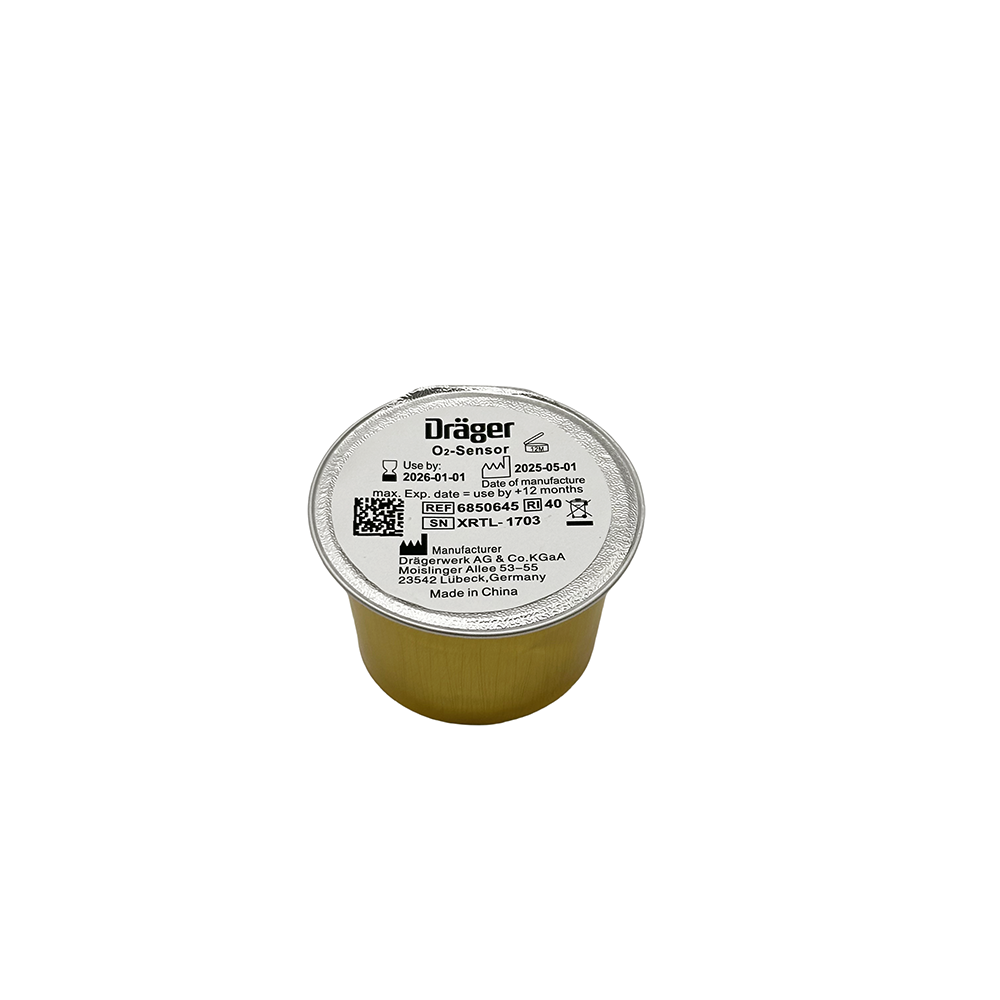

    Drager 6850645 medical oxygen sensor o2 cell / oxygen battery

    Technical Specifications

    Measuring range0-100%
    Accuracy+/-2% of full scale
    Signal output10-14mV
    Linearity+/-2% of full scale
    Response T9013 sec
    Temp Coefficientcompensated
    Shelf Life6 months
    Humidity Non-condensing0-99% RH
    Operating Temp0 to 40℃
    Recommended storage0 to 25℃
    Expected Life60 months
    Warrangty18 months
    Electrical Connectorgold plated slip rings


    Measurement Range:0-100 % oxygen
    Accuracy and Repeatability:< 1 % vol. O2when calibrated at 100 % O2
    Zero Ofset:< 0.5 % vol. O2in 100% N2, applied 5 minutes
    Linearity Error:< 3 % relative
    Cross Interference:< 0.5 % vol. O2response to:
    10 % CO2balance N2
    80% N2O balance N2
    7.5% Halothane balance N2
    7.5 % Isofurane balance N2
    7.5 % Enfurane balance N2
    9% Sevofurane balance N2
    20% Desfurane balance N2
    Infuence of Humidity:- 0.03 % rel. per % RH at 25C
    Infuence of Pressure:proportional to change in oxygen partial
    pressure
    Infuence of Mechanical Shock:< 1% relative after a fall from 1m
    Operating Temperature:0 to 50C
    Temperature Compensation:built-in NTC compensation (see below)
    Efect of Temperaturebetween +5 C and +25 C: 3 % relative error
    Compensation (steady state):between 0 C and +50 C: 8 % relative error
    Operating Humidity:0-99 % RH non-condensing
    Long Term Output Drift:< 1 % vol oxygen per month
    typically < - 15 % relative over lifetime
    Storage Temperature:-20 to +50 C
    Recommended Storage:+5 to +15 C
    Recommended Load:10 kOhms
    Warm-Up Time:< 30 minutes, after replacement of sensor
    Weight:approximately 28 grams
    approximately 43 grams E61912 series
